(Day 21) - Advent of Cyber

Reverse Engineering

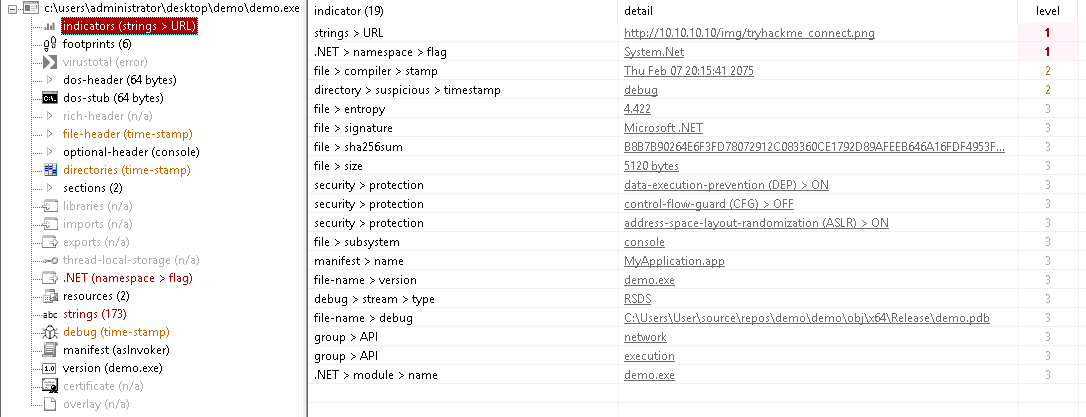

Upon opening the windows VM we will open the PEStudio software and open the file located at /demo/demo.exe. So that we see the following:

By clicking the indicators we are able to identify and learn that the file is compiled using the .NET framework with the C# language as seen here:

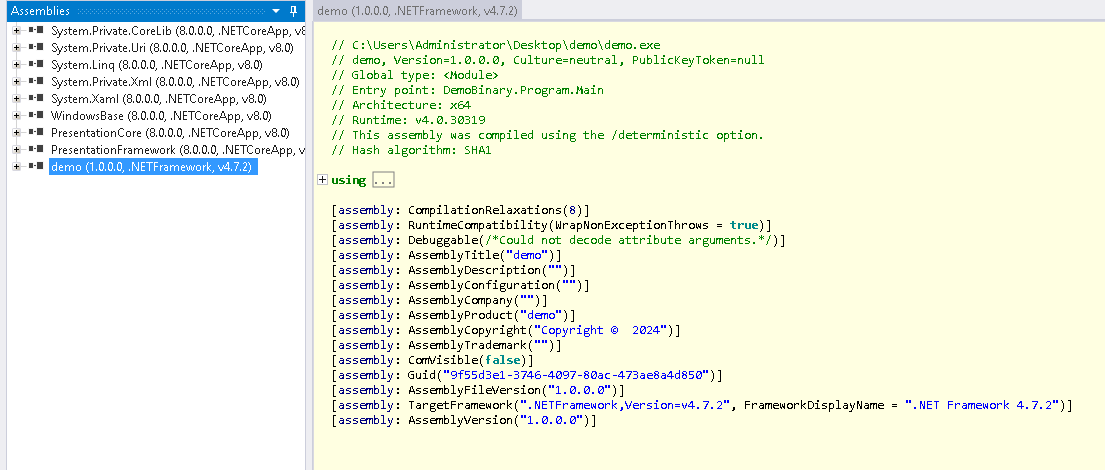

Now we have the basic information about the executable we will now use the ILSpy tool to decompile the binary with readable information. That should look something like this:

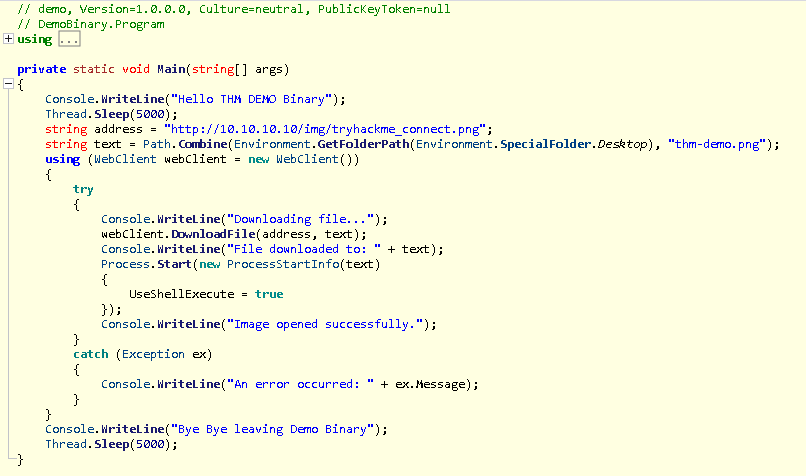

Heading to the main function, we are able to understand what the code is attempting to do:

Here we see the code is attempting to download an image and place it on the desktop of the user. Now we are tasked to perform reverse engineering on the WarevilleApp.exe.

WarevilleApp.exe

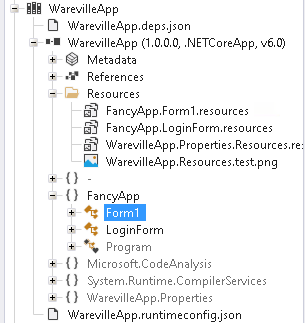

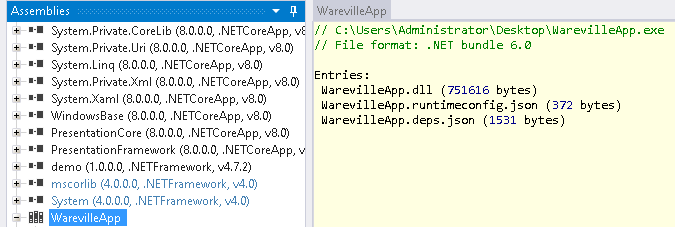

Opening the following executable in the ILSpy software, we see the following:

We will now head to the form1 section:

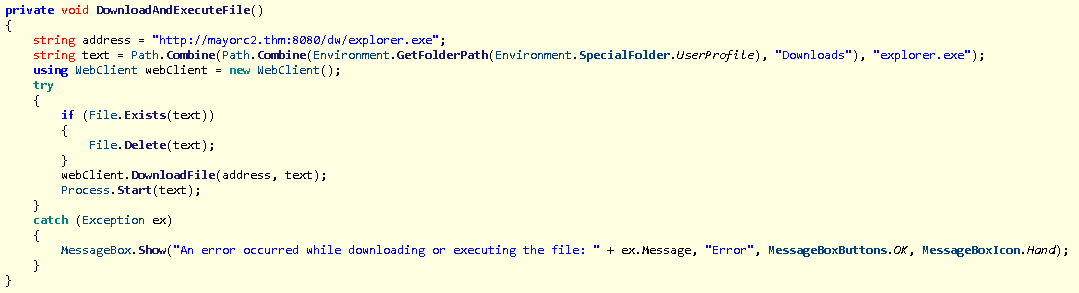

Looking at this section, we find functions, one of which is very interesting:

This function downloads another binary called explorer.exe. This binary comes from the following domain name mayorc2.thm.

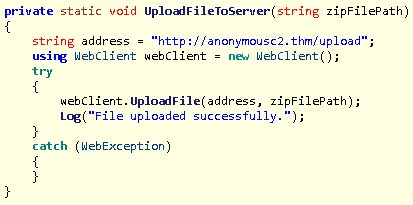

Now what we will now is run the following WarevilleApp.exe binary to obtain the explorer.exe binary so that we can decompile that binary. After running the binary and opening the explorer.exe binary in ILSpy we find out some new information in the following two functions:

Within the following functions we are able to see the name of the zip file: CollectedFiles.zip. Additionally we see the second c2 server used by Mayor Malware: http://anonymousc2.thm/upload
