(Day 22) - Advent of Cyber
Kubernetes DFIR
Initialisation
minikube start

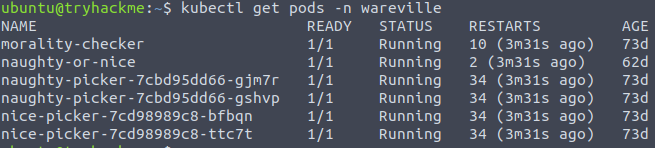

To confirm the cluster is up and running we can run the following command and make sure that the running column is (1/1) and STATUS is running:
kubectl get pods -n wareville
Logs
In order to recover the logs we need to connect to the pod using the following command:
kubectl exec -n wareville naughty-or-nice -it -- /bin/bash
Now we will review the Apache2 access logs through the following command:
cat /var/log/apache2/access.log
We don't see much but in the last log we see a very interesting log:
172.17.0.1 - - [29/Oct/2024:12:32:48 +0000] "GET /shelly.php?cmd=whoami HTTP/1.1" 200 224 "-" "Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/113.0"
This log is suspicious however, we do not have any other logs so we will now run the following commands to check the backups of the logs:
exit
cd /home/ubuntu/dfir_artefacts/
cat pod_apache2_access.log
Within the logs we identify certain logs, such as:
127.0.0.1 - - [29/Oct/2024:12:38:45 +0000] "GET /shelly.php?cmd=whoami HTTP/1.1" 200 224 "-" "Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/113.0"
127.0.0.1 - - [29/Oct/2024:12:38:53 +0000] "GET /shelly.php?cmd=whoami HTTP/1.1" 200 224 "-" "Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/113.0"
127.0.0.1 - - [29/Oct/2024:12:38:59 +0000] "GET /shelly.php?cmd=ls HTTP/1.1" 200 386 "-" "Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/113.0"
127.0.0.1 - - [29/Oct/2024:12:39:16 +0000] "GET /shelly.php?cmd=cat+db.php HTTP/1.1" 200 463 "-" "Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/113.0"
127.0.0.1 - - [29/Oct/2024:12:39:38 +0000] "GET /shelly.php?cmd=whoami HTTP/1.1" 200 224 "-" "Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/113.0"
127.0.0.1 - - [29/Oct/2024:12:39:46 +0000] "GET /shelly.php?cmd=which+nc HTTP/1.1" 200 215 "-" "Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/113.0"
There we are able to identify that the attacker is interacting with the shelly.php file, the attack read the db.php file and the attacker was checking if the tool nc which is typically used for reverse connections.
We don't have much else here so now we will need to investigate the docker registry using the following command:
docker ps
From this command we see the following information:
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
77fddf1ff1b8 registry:2.7 "/entrypoint.sh /etc…" 2 months ago Up 42 minutes 0.0.0.0:5000->5000/tcp, :::5000->5000/tcp registry_priv
cd9ee77b8aa5 gcr.io/k8s-minikube/kicbase:v0.0.42 "/usr/local/bin/entr…" 9 months ago Up 26 minutes 127.0.0.1:32772->22/tcp, 127.0.0.1:32771->2376/tcp, 127.0.0.1:32770->5000/tcp, 127.0.0.1:32769->8443/tcp, 127.0.0.1:32768->32443/tcp minikube
Now we will connect to the instance to check for any interesting logs:
docker exec registry_priv ls -al /var/log
From which we receive the following:
total 12
drwxr-xr-x 2 root root 4096 Nov 12 2021 .
drwxr-xr-x 1 root root 4096 Nov 12 2021 ..
Here we see nothing however, docker itself keeps logs, so lets look at them:
docker logs registry_priv
There is a lot of information here, it is hard to read, so now we will use the previously downloaded version by heading to the following folder:
cd /home/ubuntu/dfir_artefacts/
And we will be using the following file: docker-registry-logs.log We will look through the IP addresses using the following command:
cat docker-registry-logs.log | grep "HEAD" | cut -d ' ' -f 1
We receive the following IPs:
172.17.0.1
10.10.130.253
Here we see the IP 172.17.0.1 which is a known IP however, the IP 10.10.130.253 is not known to us. Now we can search for all the logs which include the IP address:
cat docker-registry-logs.log | grep "10.10.130.253"
There we see some interesting logs:
10.10.130.253 - - [29/Oct/2024:12:26:40 +0000] "GET /v2/wishlistweb/manifests/latest HTTP/1.1" 200 6366 "" "docker/19.03.12 go/go1.13.10 git-commit/48a66213fe kernel/4.15.0-213-generic os/linux arch/amd64 UpstreamClient(Docker-Client/19.03.12 \\(linux\\))"
In this log we identify that the attacker has successfully managed to read the manifest for wishlistweb. We also understand the the user-agent was the docker client which means the docker CLI was used to access the registry, the connection came from 10.10.130.253 and the client was authenticated.
Now we can search for any PATCH HTTP methods to identify anyone who may have pushed a new image:
cat docker-registry-logs.log | grep "10.10.130.253" | grep "PATCH"
From there we discover the following:
10.10.130.253 - - [29/Oct/2024:12:34:28 +0000] "PATCH /v2/wishlistweb/blobs/uploads/29667052-1161-4ef0-aa89-dc40a2ff1bcb?_state=AYqTsngRJQiO8AkQuMPShxj8LsmV_ePzL0IgISK-N7N7Ik5hbWUiOiJ3aXNobGlzdHdlYiIsIlVVSUQiOiIyOTY2NzA1Mi0xMTYxLTRlZjAtYWE4OS1kYzQwYTJmZjFiY2IiLCJPZmZzZXQiOjAsIlN0YXJ0ZWRBdCI6IjIwMjQtMTAtMjlUMTI6MzQ6MjguNzA0Njc2NTM5WiJ9 HTTP/1.1" 202 0 "" "docker/19.03.12 go/go1.13.10 git-commit/48a66213fe kernel/4.15.0-213-generic os/linux arch/amd64 UpstreamClient(Docker-Client/19.03.12 \\(linux\\))"
10.10.130.253 - - [29/Oct/2024:12:34:31 +0000] "PATCH /v2/wishlistweb/blobs/uploads/7d53a7ab-7489-4580-9d60-057ded8d5b15?_state=qgIkGiYWdoRmfiuY42h1hpHXQM89dTDL3Ag7YsIUQA17Ik5hbWUiOiJ3aXNobGlzdHdlYiIsIlVVSUQiOiI3ZDUzYTdhYi03NDg5LTQ1ODAtOWQ2MC0wNTdkZWQ4ZDViMTUiLCJPZmZzZXQiOjAsIlN0YXJ0ZWRBdCI6IjIwMjQtMTAtMjlUMTI6MzQ6MzEuODEwNzI0NTQ1WiJ9 HTTP/1.1" 202 0 "" "docker/19.03.12 go/go1.13.10 git-commit/48a66213fe kernel/4.15.0-213-generic os/linux arch/amd64 UpstreamClient(Docker-Client/19.03.12 \\(linux\\))"
Now we know exactly what happened to change the wishlist, we need to know how mayor malware managed to get access to upload anything. We will do this by heading back to our kubernetes environment.
kubectl get rolebindings -n wareville
There we see:
NAME ROLE AGE
job-runner-binding Role/job-runner 74d
mayor-user-binding Role/mayor-user 74d
Now we will check further the rolebinding for mayor malware:
kubectl describe rolebinding mayor-user-binding -n wareville
From that we get the following information:
Name: mayor-user-binding
Labels:
Annotations:
Role:
Kind: Role
Name: mayor-user
Subjects:
Kind Name Namespace
---- ---- ---------
User mayor-malware
So we see that the user mayor-malware has the mayor-user-binding role. Now we will check the permissions under that role:
kubectl describe role mayor-user -n wareville
From that we receive:
Name: mayor-user
Labels:
Annotations:
PolicyRule:
Resources Non-Resource URLs Resource Names Verbs
--------- ----------------- -------------- -----
pods/exec [] [] [create get list]
rolebindings.rbac.authorization.k8s.io [] [] [get list describe]
roles.rbac.authorization.k8s.io [] [] [get list describe]
pods [] [] [get list watch]
Here we receive an unusual permission which is pods/exec which means that the user can access a shell in the containers in the pod. Now we are able to access and check the logs specifically for the mayor malware user using the following command:
cat audit.log | grep --color=always '"user":{"username":"mayor-malware"' | grep --color=always '"resource"' | grep --color=always '"verb"'
After discovering all of the commands and the process that Mayor Malware took, we can now run the following command to discover the secret credentials:
kubectl get secret pull-creds -n wareville -o jsonpath='{.data.\.dockerconfigjson}' | base64 --decode
Receiving the following:
{"auths":{"http://docker-registry.nicetown.loc:5000":{"username":"mr.nice","password":"Mr.N4ughty","auth":"bXIubmljZTpNci5ONHVnaHR5"}}}
